201 camera series: OEM/ODM ready IP board camera

201 camera series: OEM/ODM ready IP board camera

We are introducing a new 200-camera series, the first camera in the line-up will be the 201-IP-462, a single board, color IP camera. The camera has Full HD 1080p image resolution with the powerful 1/2.8" Sony IMX462 STARVIS 2MP image sensor at its core.

Compact Design, Strong Low Light Performance

Measuring just 38x38x6,7mm (1.5x1.5x0.26"), the 201-IP-462 combines a small board size with exceptional capabilities. With its compact design, the camera is perfectly suited for applications that require a small form factor without compromising performance. The camera is compatible with pinhole, M12, and CS lens mounts.

With an ultra low light sensitivity up to ~0.001Lux, the camera has good low light performance, capturing color details in extremely low light conditions or no light.

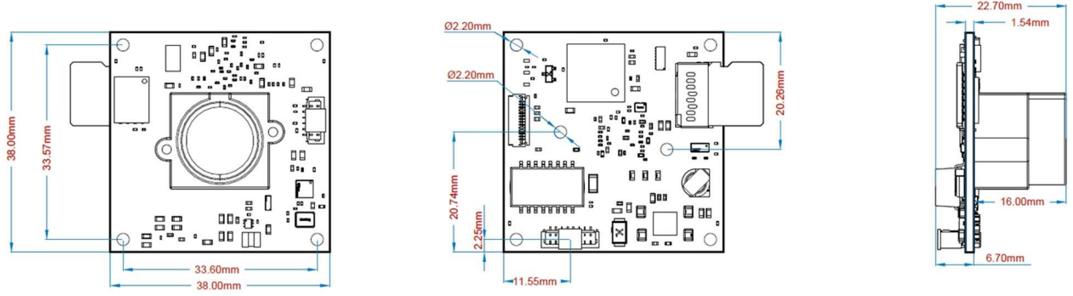

Videology 201-IP-462 IP Camera Dimensions


Low latency and faster frame rates

With a latency of less than ~150ms, users can expect real-time video streaming without any noticeable delay on the camera side. This is especially important in applications that require immediate monitoring and response, such as security surveillance or live video streaming.

The high performing image signal processor of 201-IP-462 supports 1080p H.264, H.265, and MJPEG video encoding and decoding capability up to 60fps. Along with the 2.9µm pixel size, the camera has advanced image enhancement and noise reduction capabilities. The 201-IP-462 captures smooth and fluid video footage, ensuring that no crucial details are missed.

2MP IP camera low latency and low light sensitivity

Develop and deploy applications easily and quickly

Equipped with an embedded quad-core, 64-bit RISC-V processor and a dedicated video pipeline, the 201-IP-462 camera supports easy and quick application development for system designers and developers, resulting in accelerated time to market.

Direct connectivity to any DHCP-enabled network over HTTP, RTSP, or STATIC IP protocols provides flexible connectivity and results in many benefits across wide applications of secure monitoring and surveillance via network (LAN or WAN).

Other features of 201-IP-462 that cannot go unnoticed

  • Digital ePTZ support: A moveable cropped area can be panned (horizontal movement) or tilted (vertical movement) digitally.

  • Micro SD Card Slot and GPIO Pins: With a micro SD card slot and 4 GPIO pins, the camera offers convenient onboard storage options and enhanced connectivity, allowing for easy access to footage whenever needed.
  • Fast Ethernet Connectivity: For transmission distances up to 100m (∼328 feet).

  • RTSP Video Streaming: This allows for low-latency and high-quality streaming, as it can adjust the bitrate and resolution of the media stream according to the bandwidth and device capabilities. RTSP also supports authentication and encryption, which enhances the security and privacy of video streaming.

  • NDAA Compliance: Committed to security and compliance, our camera adheres to the National Defense Authorization Act (NDAA) standards, ensuring the highest level of security and protection for your system.

201 IP Camera with  IMX462 STARVIS 2MP image sensorEngineered in the EU, manufactured in the US

The 201-IP-462 is fully designed and developed in-house at our Center of Engineering Excellence in the Netherlands. With our main manufacturing line located in Mansfield MA, USA, and an additional production facility in the Netherlands, we easily accommodate any camera customization requirements for this - and of course all our other - camera series. The seamless combination of our design and manufacturing capabilities under a single roof allows us to provide you with a camera that perfectly aligns with your unique needs and specifications.

Developing imaging solutions at scale

The launch of the 201-IP-462 board camera is the first new camera in a series of new designs developed by Videology. This platform sets the stage for Videology to accelerate new camera development even further, providing Videology with a flexible and robust foundation that can be customized to meet your specific needs and requirements even faster than before.

Does your application need greater light sensitivity, a different camera interface, or a higher resolution? Our goal is to meet your custom project requirements, making your camera selection and integration process seamless, saving you valuable time, and ensuring your project always stays on track. Plus, with our wide range of customization possibilities, you can truly make our cameras your own.

Reach out to us today and let us help you achieve your imaging goals.
