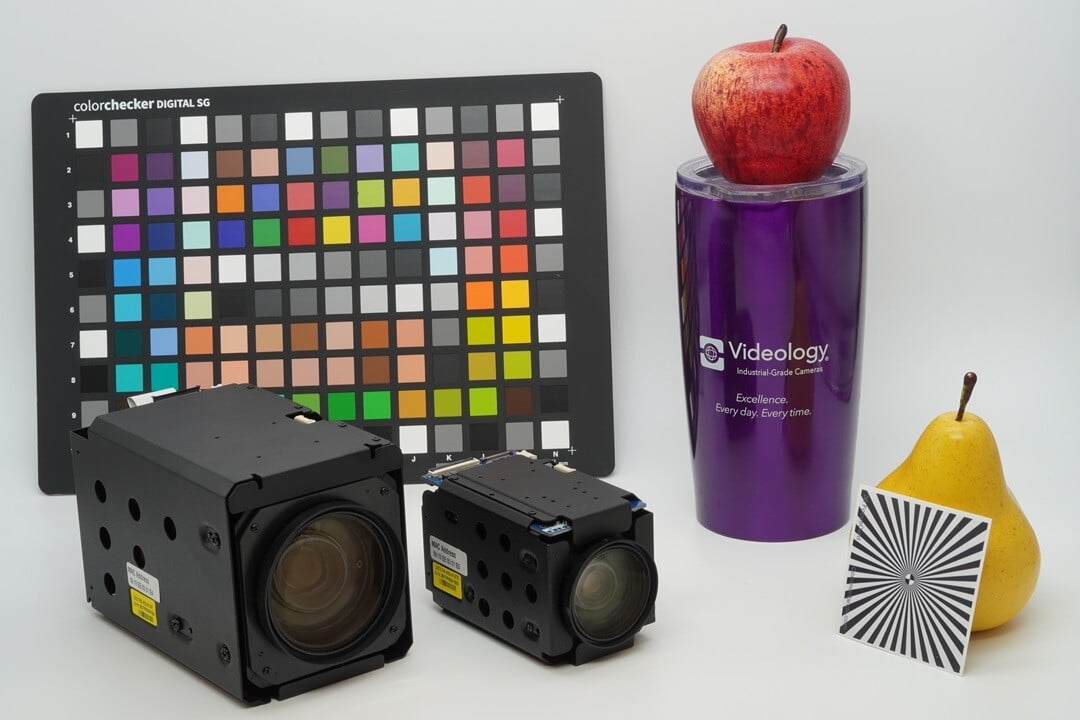

New 40x IP Zoom Block Cameras redefine low-light imaging

We are excited to introduce two IP Zoom Block Cameras as the latest additions to our camera solutions portfolio. Designed for high-performance imaging applications, these cameras integrate Sony’s STARVIS technology, delivering unparalleled low-light sensitivity, superior clarity, and exceptional autofocus and zooming performance with IP camera output.

Clarity and zoom performance in 4MP resolution

ZB40X-401-IPCV-675-AFC2 and ZB40X-402-IPCV-347-AFC2 models are built for industrial, security, and medical applications, offering outstanding image quality and versatility. With a powerful 40x optical zoom, these cameras provide unmatched precision, enabling users to capture fine details from a distance with clarity and accuracy. Their 4MP resolution - also referred as Quad HD (QHD) - ensures high-definition image output, making them ideal for environments where every detail counts.

Technical highlights

• Sony STARVIS Image Sensors: The industry-leading sensors provide exceptional low-light performance, producing crisp, noise-free images in challenging lighting conditions.
• 40x Optical Zoom: Ensures detailed close-ups without compromising image quality, making these cameras suitable for surveillance, inspection, and research applications.
• 4MP Resolution: Delivers high-definition images for enhanced clarity and sharpness.
• IP Output: Allows seamless integration into networked environments, enabling remote access, real-time monitoring, and data streaming.

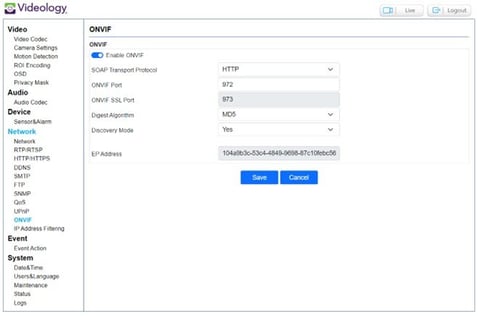

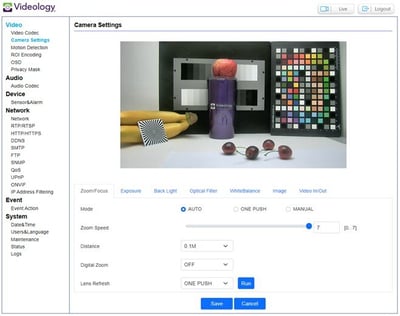

• Extended Web Interface: Both cameras come equipped with an intuitive, feature-rich web interface, allowing users to configure camera settings, adjust zoom levels, and monitor live feeds with ease. This advanced interface enhances usability, making remote operation and control more accessible than ever.

Key differences between the two cameras

While both models share many high-performance specifications, there are some notable differences:

Image Sensor Type and Size

• The ZB40X-401-IPCV-675-AFC2 features a 1/2.8” SONY STARVIS-2 CMOS Sensor IMX675.
• The ZB40X-402-IPCV-347-AFC2 is equipped with a 1/1.8” SONY STARVIS CMOS Sensor IMX347. The IMX347 sensor offers improved noise reduction and dynamic range, particularly in low-light conditions, ensuring cleaner images in challenging environments.

Mechanical Differences

• The ZB40X-401-IPCV-675-AFC2 has dimensions of 54 mm x 64 mm x 101 mm and weighs 355 grams, making it a more compact and lightweight option for applications where space is limited.
• The ZB40X-402-IPCV-347-AFC2 measures 82 mm x 94.3 mm x 143.5 mm and weighs 890 grams. The larger size accommodates a larger optical array designed to capture more light. While this makes it heavier and larger than its counterpart, the ZB40X-402-IPCV-347-AFC2 is better suited for applications where a larger form factor is acceptable and ultra-low light performance is essential.

 While this makes it heavier and larger than its counterpart, it is an ideal choice for applications where a larger form factor is acceptable and superior low-light performance is critical

Low-Light Performance

Both cameras are strong low-light performers. However, the ZB40X-402-IPCV-347-AFC2 takes this to the next level.

ZB40X-401-IPCV-675-AFC2 Minimum Illumination:

• • 1/30 s: Color: 87.3 dB : 0.02 lux, B&W: 87.3 dB : 0.002 lux

  • DSS 1/1 s: Color: 87.3 dB : 0.002 lux, B&W: 87.3 dB : 0.0002 lux

ZB40X-402-IPCV-347-AFC2 Minimum Illumination:

• • 1/30 s: Color: 70 dB : 0.01 lux, B&W: 70 dB : 0.001 lux

• • DSS 1/1 s: Color: 70 dB : 0.001 lux, B&W: 70 dB : 0.0001 lux

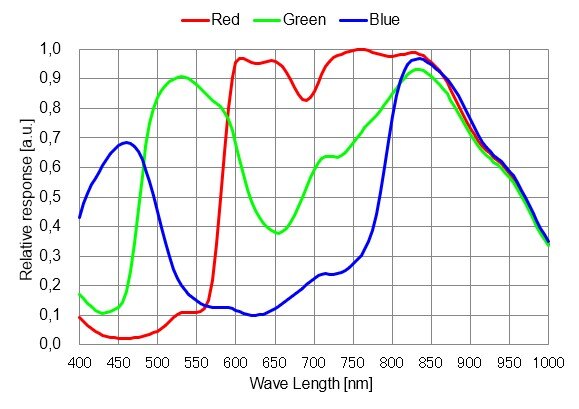

• Spectral Response Chart for ZB40X-402-IPCV-347-AFC2

Advanced imaging for industrial applications​

Integrating optical zoom and autofocus capabilities in our block cameras significantly enhances their performance and adaptability. Optical zoom allows for magnifying subjects at varying distances without sacrificing image quality, as it adjusts the lens's focal length to maintain clarity. This is particularly crucial in industrial applications where detailed visualization is essential.

Incorporating autofocus, on the other hand, ensures that these magnified subjects remain sharp and well-defined, even when distances or object positions change. This combination transforms our block cameras into robust tools, capable of delivering high-quality images in complex and variable settings.

​The 40x IP Zoom Block Cameras are engineered to meet the high demands of industries such as manufacturing, aerospace, defense, and medical imaging. Their integration of advanced image sensors and optics ensures exceptional precision, vital for applications requiring detailed and accurate visual analysis.

Their IP output facilitates seamless integration into existing network infrastructures, enabling remote monitoring and control. This network connectivity streamlines installation processes and enhances operational efficiency with centralized management and real-time data access.

These features position the cameras as optimal solutions for environments where high-performance imaging and precise detail capture are critical.

Facilitating a quick start with the development kits

To ensure seamless integration and rapid deployment, both cameras are offered with a comprehensive development kit. The Dev-ZB40X-401-IPCV-675-AFC2 and Dev-ZB40X-402-IPCV-347-AFC2 development kits contain all the necessary components to validate and begin using the cameras immediately in your applications.

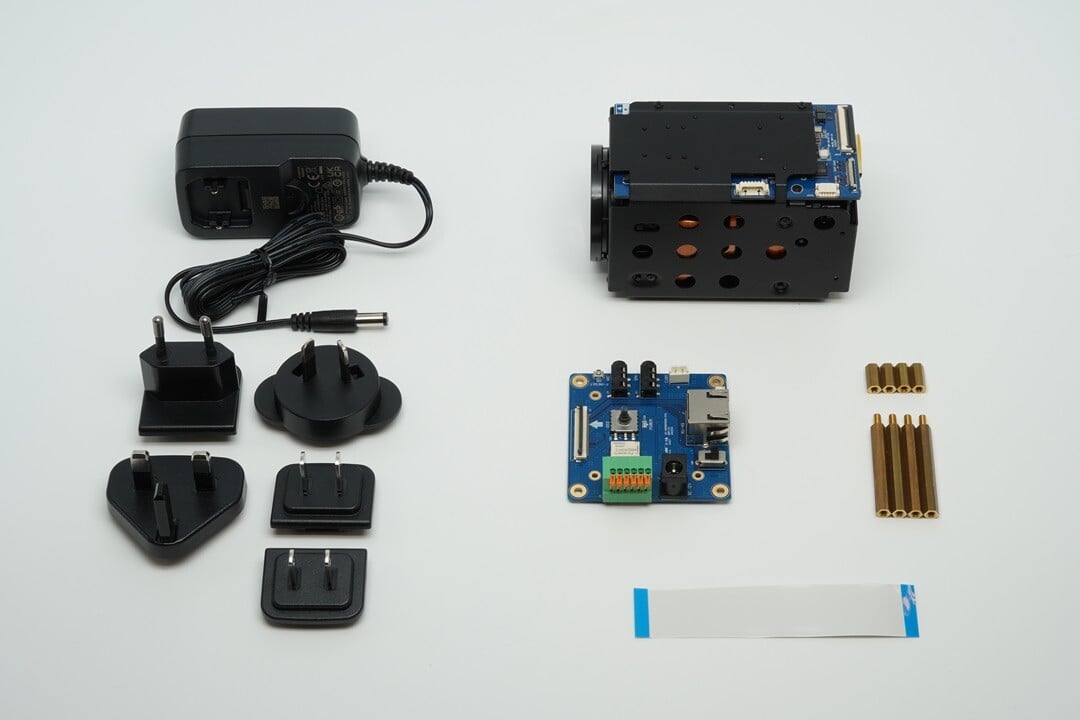

• The ZB40X-401-IPCV-675-AFC2 Development Kit components

Additionally, the accompanying Quick Start Guides offer detailed instructions to ensure a smooth setup process. You may access them via the links below:

• Quick Start Guide for ZB40X-401-IPCV-675-AFC2
• Quick Start Guide for ZB40X-402-IPCV-347-AFC2

Celebrating 30 Years of Imaging Excellence

In 2025, Videology proudly commemorates three decades of pioneering advancements in imaging technology. Our steadfast commitment to our motto, "Excellence Every Day, Every Time," drives us to deliver innovative, high-performance solutions that consistently surpass industry standards.

We are happy to introduce the two new 40x IP Zoom Block Cameras as an expansion to our Zoom Block camera lineup. These models extend our range with 4MP resolution, improved low-light sensitivity, and IP streaming capabilities. They deliver high-performance imaging for the most demanding applications.

Experience the Future of Imaging

Discover how the Videology ZB40X-401-IPCV-675-AFC2 and ZB40X-402-IPCV-347-AFC2 Zoom Block Cameras can elevate your imaging capabilities to meet your unique requirements, delivering powerful optical zoom and high-resolution performance in a compact, integrated design.

Explore our full range of imaging solutions, including Videology IP board cameras for embedded and space-constrained applications. Contact us today to explore our tailored solutions that align with your specific needs.
